復卷機系列當前位置:首頁 > 復卷機系列

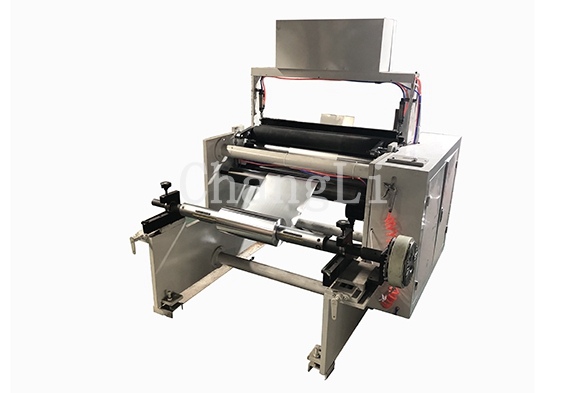

CLFJ-600型自動復卷機
發布日期:[2018-08-17] 點擊率:機型 | FJ-600 | FJ- 800 | FJ-1000 |
卷材寬度 | 600mm | 800mm | 1100mm |
放卷直徑 | Φ600mm | Φ600mm | Φ600mm |
收卷直徑 | Φ260mm | Φ260mm | Φ260mm |
速度 | 10-190m/min | 10-190m/min | 10-190m/min |
總功率 | 2.3KW | 3KW | 3KW |
重量 | 800kg | 900kg | 1000kg |
外形尺寸 | 1500×1300×1700mm | 1500×1500×1700mm | 1500×1700×1900mm |
用途:
該機是生產硬紙芯、軟紙芯、等小卷筒紙(禮品紙、廣告紙、墻紙、各種包裝紙)的專用設備。
特點:
放卷:可調節式放卷架
收卷:連續式氣漲軸、電腦控制充氣與打開(可任意調節收卷軸直徑)
切斷:采用上下式橫切刀
主控:微電腦控制,具有準確的計米及較高的自動化操作性能
具有定長精度高,收卷整齊,操作簡便,外型美觀,性能穩定等功能,還可以和全自動收縮包裝機配套形成生產線。
use:
This machine is a special equipment for producing hard paper core, soft paper core, and other small webs (gift paper, advertising paper, wallpaper, various wrapping paper).
Features:
Unwinding: Adjustable unwinding rack
Winding: continuous air-up shaft, computer controlled inflation and opening (can adjust the reel diameter arbitrarily)
Cut off: use upper and lower cross cutter
Master: Microcomputer control with precise metering and high automation performance
It has the functions of high fixed length precision, neat winding, simple operation, beautiful appearance and stable performance. It can also form a production line with automatic shrink packaging machine.
